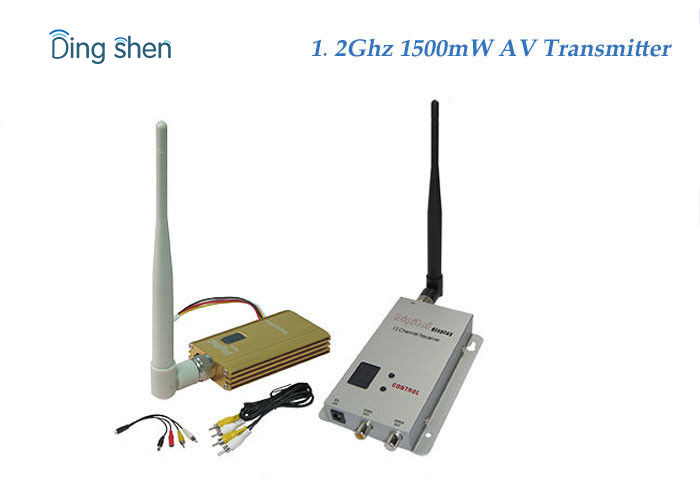

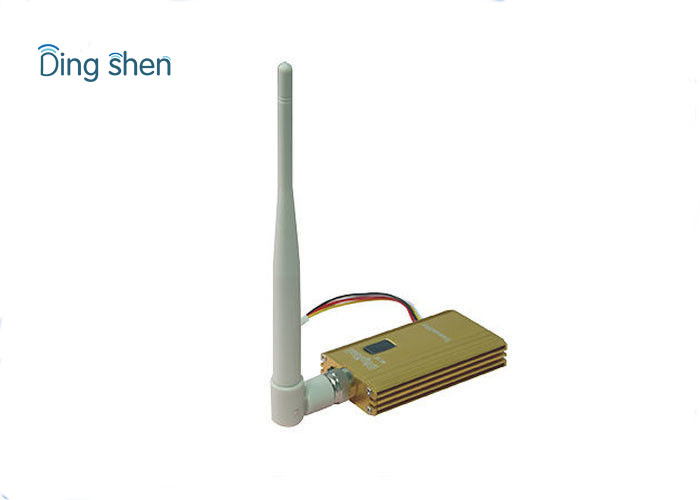

UAV Wireless Video Transmitter 1500mW 2KM Transmit Distance

Name: UAV Wireless Video Transmitter 1500mW 2KM Transmit Distance
Brand: Ding Shen
Price: 1 USD

Buy cheap UAV Wireless Video Transmitter 1500mW 2KM Transmit Distance product

Brand Name : Ding Shen

Model Number : DS-A15

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000PCS per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Frequency : 1.2G/1.3G

Transmit Power : 1500mW

System : PAL/NTSC

High Light : uav transmitter, cofdm video sender

Number Of Channels : 8 Channels

Voltage : DC 12V

Type : Wireless Video Transmitter

Contact Now

UAV Wireless Video Transmitter 1500mW 2KM Transmit Distance

UAV Wireless Video Transmitter 1500mW 2KM Transmit Distance .

Specification:

Model	DS-A15
Voltage	DC 12V
Current	600mA
Frequency	1.2G/1.3G
Number of channels	8CHs
Transmit Power	1500mW
Video Output	1 Vp-p(FM)
Audio Output	1 Vp-p(FM)
Audio Carrier Ware	5.5M 6.0M
Distance (Open environment)	1000m-3000m
Overall Configuration	Transmitter, receiver, video cable, power supply, antenna
Temperature	-10℃～+50℃
Transmitter Weight	82g
Receiver Weight	120g
Overall Weight	800g
Dimensions (L * W * H)	Transmitter:734114mm. Receiver:1168021mm
Box size (L * W * H)	24516065mm

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver
