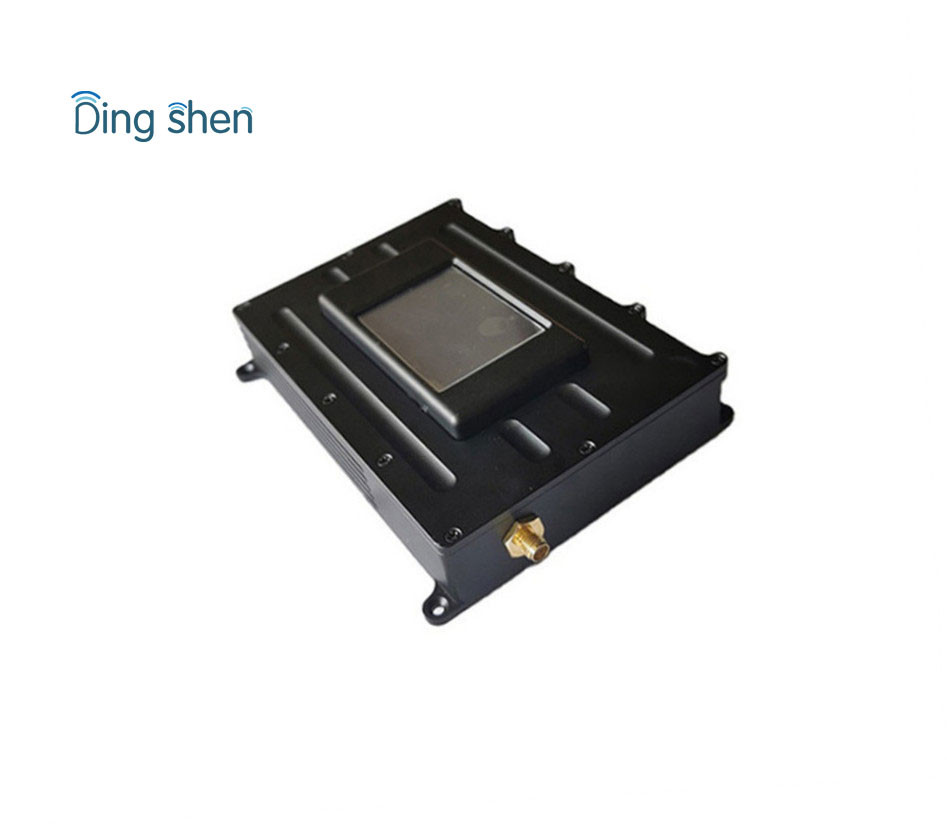

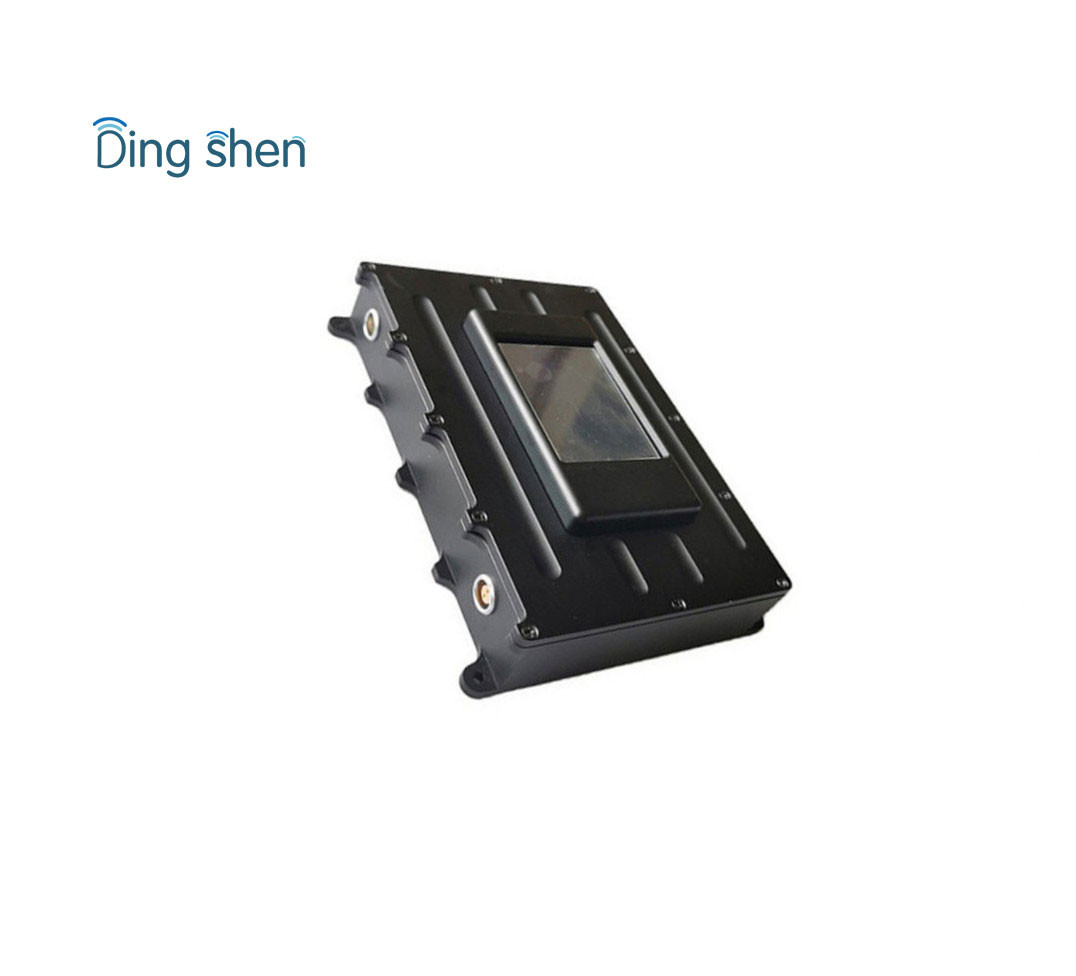

DS-HDT2W
Easy carry Mini Full-HD Wireless COFDM AV Transmitter for helmetrotable Mini Full-HD Wireless COFDM AV Transmitter for helmet
Its advantages small size, light weight that can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.
It's widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.
.
Features:
● COFDM modulation technology ensure the stability of signal
● Support FULL HD quality,1080i/P@30fps;
● Built-in with HD and BNC ports;
● Provide AES128 encryption for video safety.
● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;
● 2-5W rf power adjustable
● Low delay time
● With four holes at the bottom of the transmitter for fixed installation
● Widely used in helicopter shooting, Live broadcast and etc…
Specification:
| Frequency | 300-900Mhz (option), or other band customized |
| Modulation | COFDM |
| Consumption | <40W |
| Encryption | AES 128 bits |
| Constellation | QPSK(4QAM),16QAM,64QAM |
| FEC | 1/2 2/3 3/4 5/6 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Carrier | 2K,8K |
| Bandwidth | 2/3/4/6/7/8MHz (option) |
| Video rate | 200kps~20000kps (adjustable) |
| RF power | 2 watt |
| Video input | HDMI,CVBS,AHD,SDI (option) |
| Video coding | H.265 |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL |
| Transmission distance | 20km from UAV to ground station; 1-4km from ground to ground |
| Working voltage | DC12V |
| Working Temperature | -20℃ -- +55℃ |
| Dimension | 132*90*26mm |
| Weight | 420g |
| Box colour | Black |
| Antenna port | N type |
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
