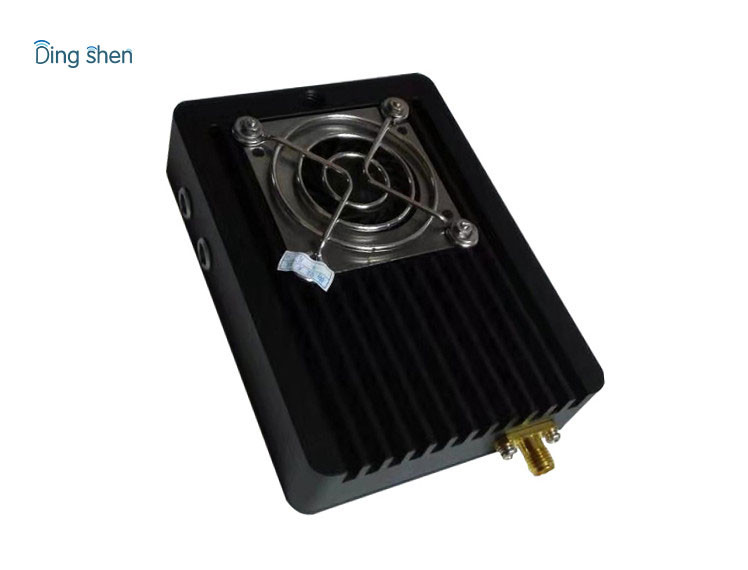

1W 1080P Wireless Hd Transmitter Long Range Drone Transmitter 300-900Mhz

Brand Name : Ding Shen

Model Number : DS-HDT1W

Place of Origin : Guangdong,china

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 72*98*32mm

Certification : CE/FCC

Frequency : 300-900Mhz or other frequency customized

Consumption : <40W

Modulation : COFDM

Encryption : AES128/256bits

Contact Now

Good Quality High Speed Long Range Wireless UAV Hd Video Transmitter Receiver

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.

Features of best choice light weight hd transmitter sky to ground

* COFDM modulation, Stable transmission
* H.264 video compression, DVD video quality;
* Modular design and highly integrated
* Adjustable working frequency, bandwidth, RF power and etc.
* Transmission security by encryption of AES 128/265 bits

Transmitter parameter:

Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	1 watt
Video input	HDMI
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	729832mm
Weight	190g without battery; 250g with battery
Box colour	Black
Antenna port	N type
