100km UAV Video Transmitter Wireless H.265 COFDM Video Audio Link

Brand Name : Ding Shen

Model Number : DS-HDT5000

Place of Origin : Guang Dong China

MOQ : 1set

Price : Negotiation

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 220*150*60mm

Certification : CE/FCC

Resolution : 1980*1080P

RF Output Power : 5 Watt

Voltage : DC12V

Compression : H264

Encryption : AES128/256bits

Product name : Broadcast Hd Sdi UAV Long Range Distance Video Transmitte

Contact Now

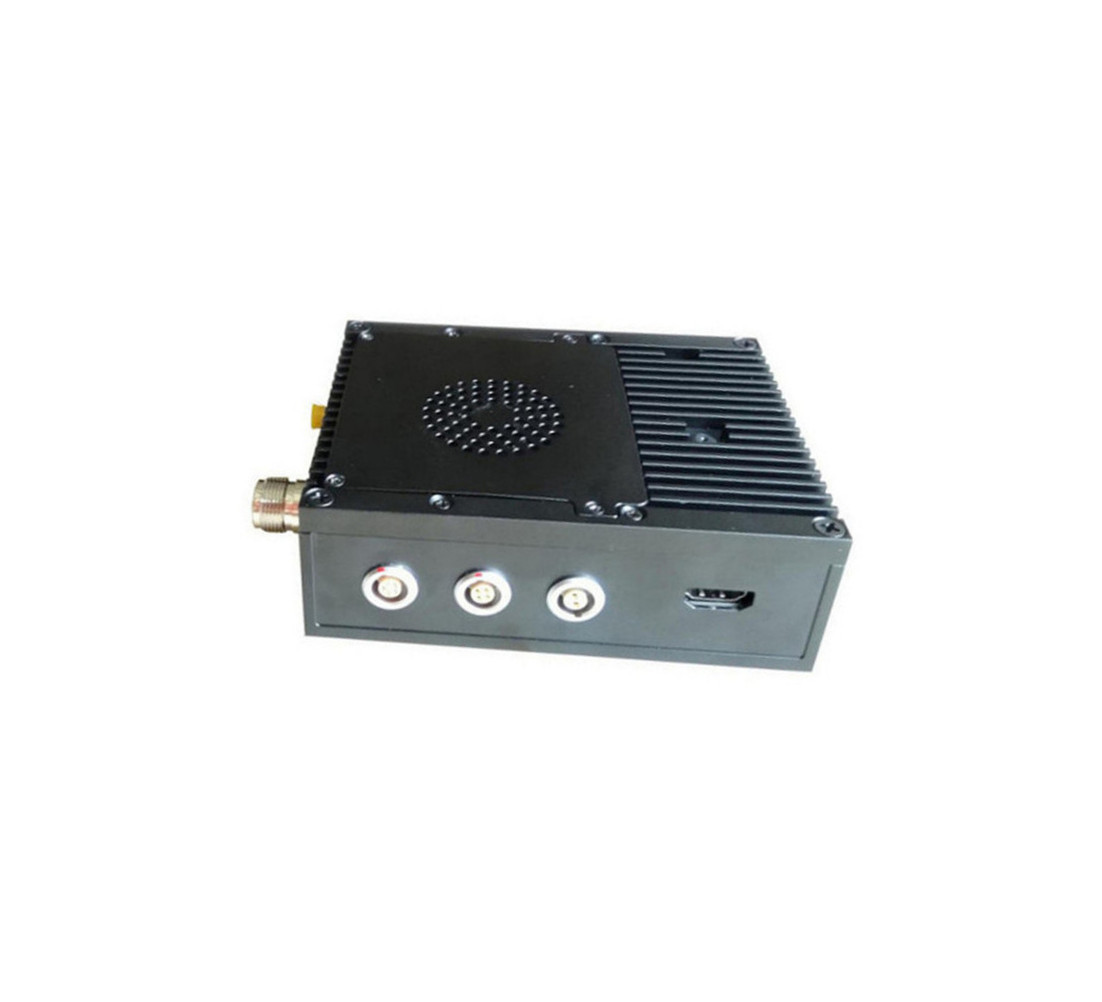

COFDM wireless video transmitter 70km to100km long range ground station for UAV drone


 This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture, short latency.
This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.
.

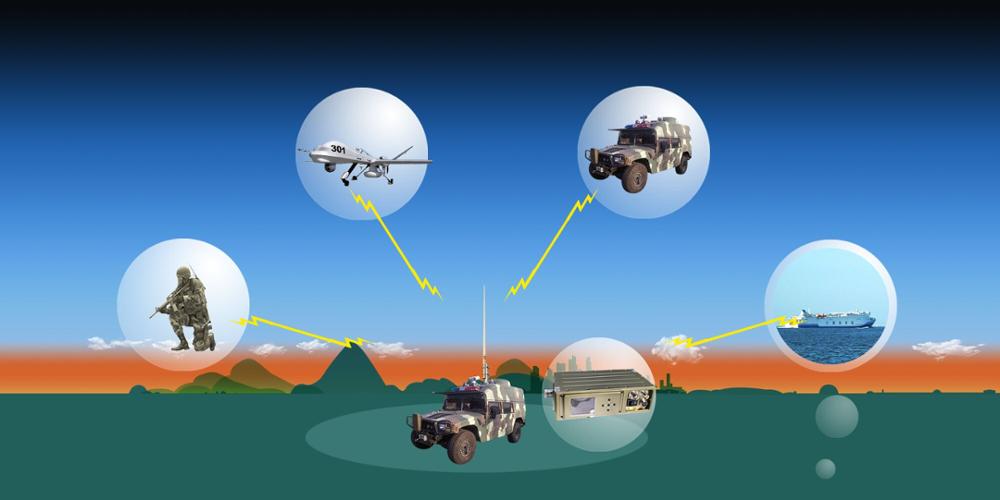

 At the front-end personnel, scouts, firefighters, rescue personnel or television interview personnel using small size, backpack or Buckle format transmitter transmit the live signals to the rear command vehicle. Then the command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command.

Features:

● COFDM modulation technology ensure the stability of signa

● Support FULL HD quality,1080i/P@30fps;

● Built-in with HD and BNC ports;

● Provide AES128 encryption for video safety.

● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

● 2-5W rf power adjustable

● Low delay time

● With four holes at the bottom of the transmitter for fixed installation

Specification:

Frequency	300-900Mhz (option), or other band customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Video rate	200kps~20000kps (adjustable)
RF power	37dbm (5W)
Video input	HDMI,CVBS,AHD,SDI (option)
Video coding	H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Transmission distance	80-100km LOS from air to ground; 1-3km NLOS on ground station
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	22015060mm
Weight	1362g
Box colour	Black
Antenna port	N type
