H.264 AV Wireless COFDM Wireless Transmitter 1920*1080P 3W

  • 1
  • 2
  • 3

Brand Name : Ding Shen

Model Number : DS-HD803

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 3,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Modulation : DVB-T

Resolution : HD1080P(1920*1080)

FFT : 2K/8K

RF Power : 1-3Watt (2K Mode)

Video Compression : H.264/MPEG-4/MPEG-2

Dimension : 153*100*34mm

Contact Now

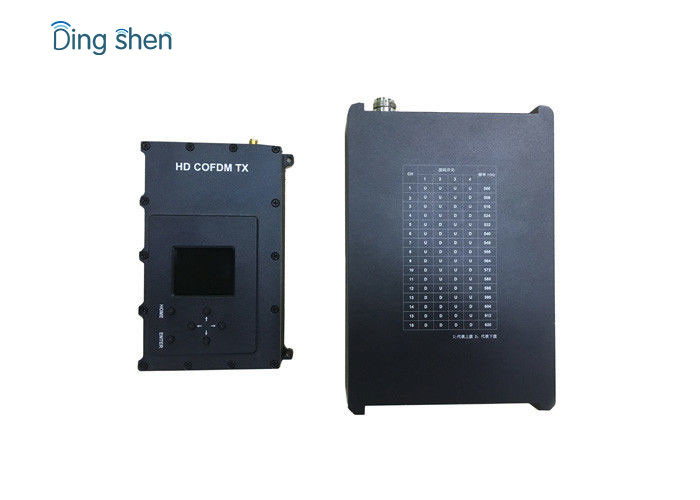

H.264 AV Wireless COFDM HD Video Transmitter and Receiver UAV Wireless Video Link 1920*1080P

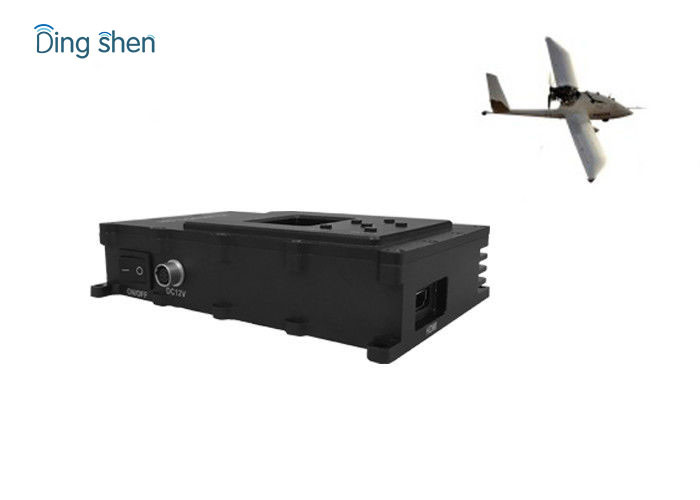

UAV COFDM HD Video Transmitter:



DS-HD803 is High cost performance full HD image transmission system equipment, standard DVB-T modulation.The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate,and then improve image quality.It can be the lowest bit rate to achieve the best quality of image.



Transmitter specification:



Power supply DC 7-16V input/output
Power consumption <5W
Modulation DVB-T
Modulation type QPSK/16 QAM/64 QAM
Scrambling way Manual settings ON/OFF
RF power output 1-3Watt (2K mode)
RF bandwidth 8MHz
AV input HD
Resolution HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression H.264/MPEG-4/MPEG-2

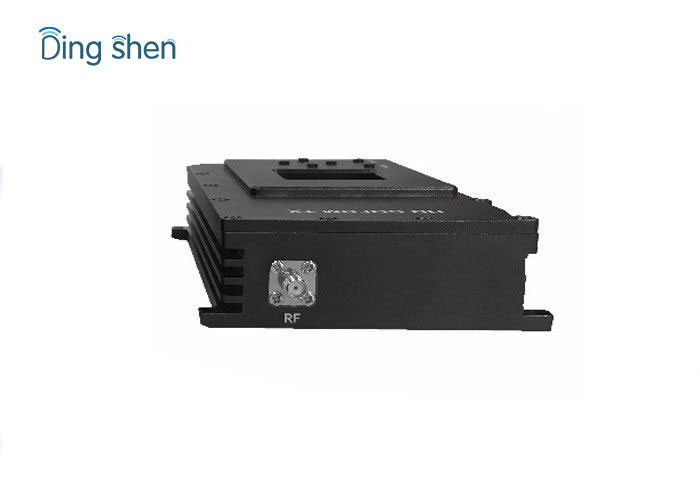

Antenna output 50Ω, SMA or “N” type Connector
Working frequency 300MHz~999MHz (optional)
Step frequency 1K Steps
Guard interval(GI) 1/4, 1/8, 1/16, 1/32 (optional)
Code rate (CR) 1/2, 2/3, 3/4, 5/6, 7/8 (optional)
FFT 2K or 8K
MER >34dBm
LCD display Showing working status and parameters
Parameter setup Manual operation by buttons
Dimension 153*100*34mm
Weight 485g



Receiver Feature:



Working Voltage DC input 7-24V
Power consumption <4W
Modulation DVB-T
Sensitivity -82dBm (64QAM, 8M/FFT:8K, GI:1/32, CR:7/8)
Working frequency 300MHz~999MHz(optional), 16 groups of frequency choice
RF bandwidth 8MHz
AV output HD
Resolution HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression H.264/MPEG-4/MPEG-2
RF connector N type
LED light Turns red when the machine is power on
Work indicator Automatically search signal after power-on, blue color and flash; While receive signal, the blue light remains on.Otherwise, lights out.
Scrambling way Manual settings ON/OFF
Dimension 197*124*51mm
Weight 1024g

H.264 AV Wireless COFDM Wireless Transmitter 1920*1080P 3WH.264 AV Wireless COFDM Wireless Transmitter 1920*1080P 3WH.264 AV Wireless COFDM Wireless Transmitter 1920*1080P 3WH.264 AV Wireless COFDM Wireless Transmitter 1920*1080P 3W
